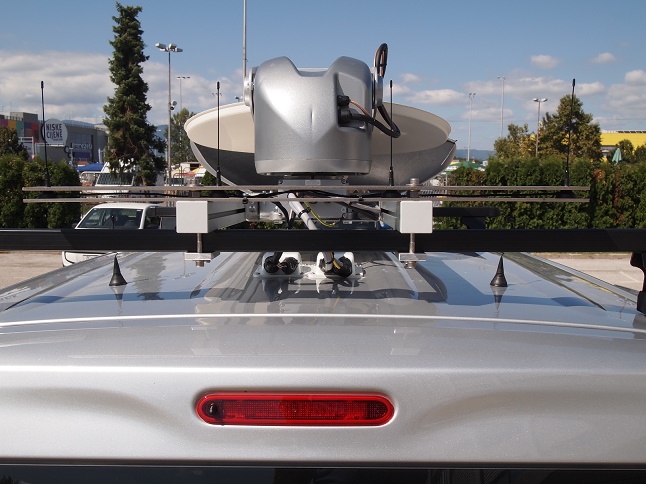

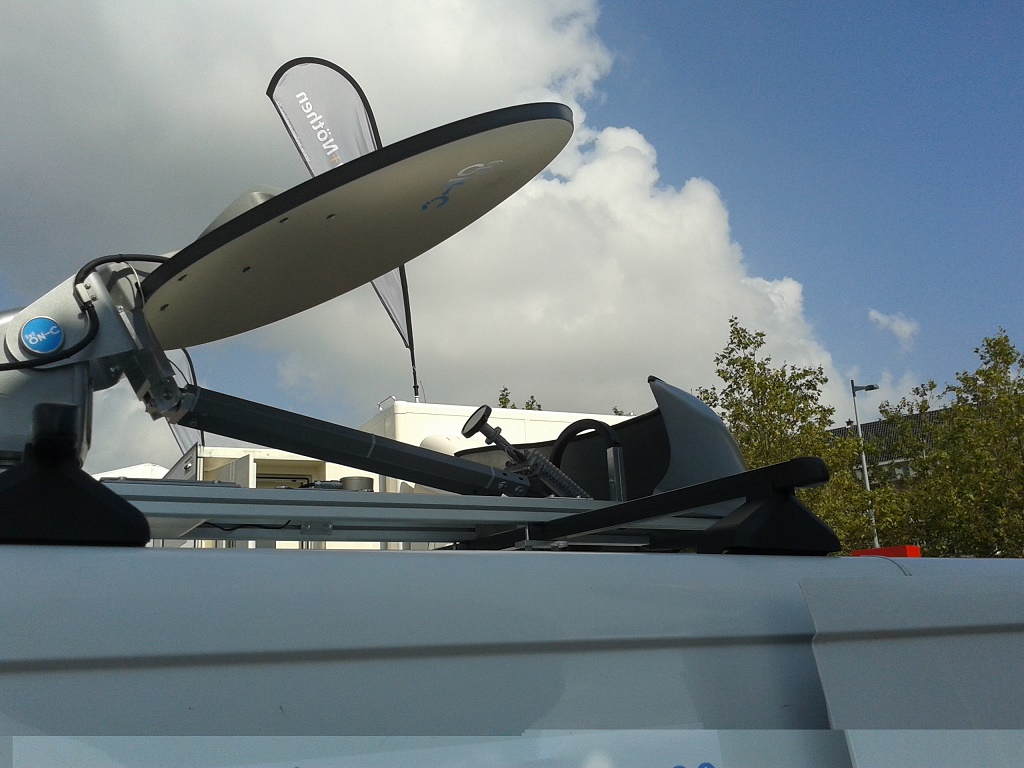

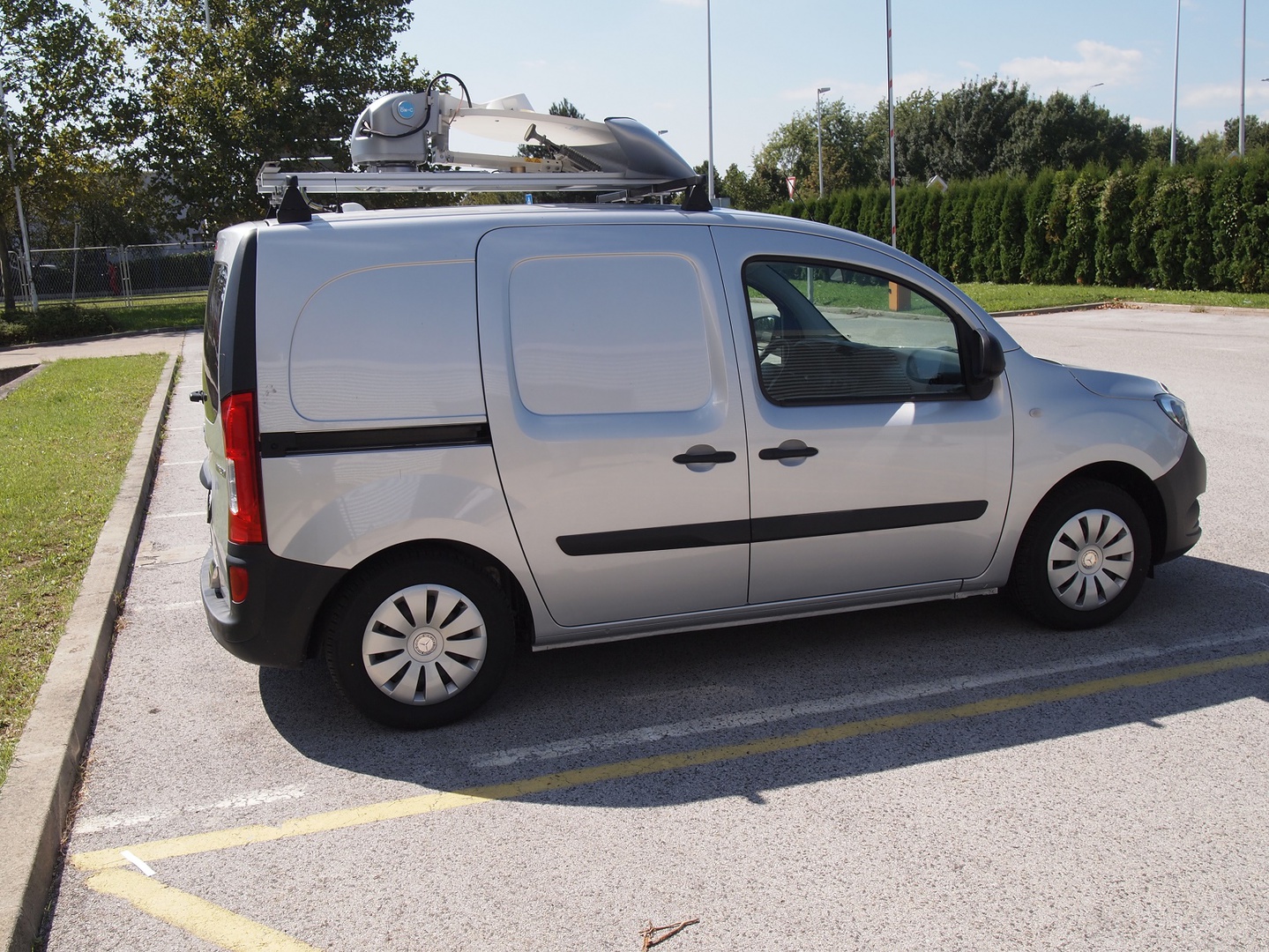

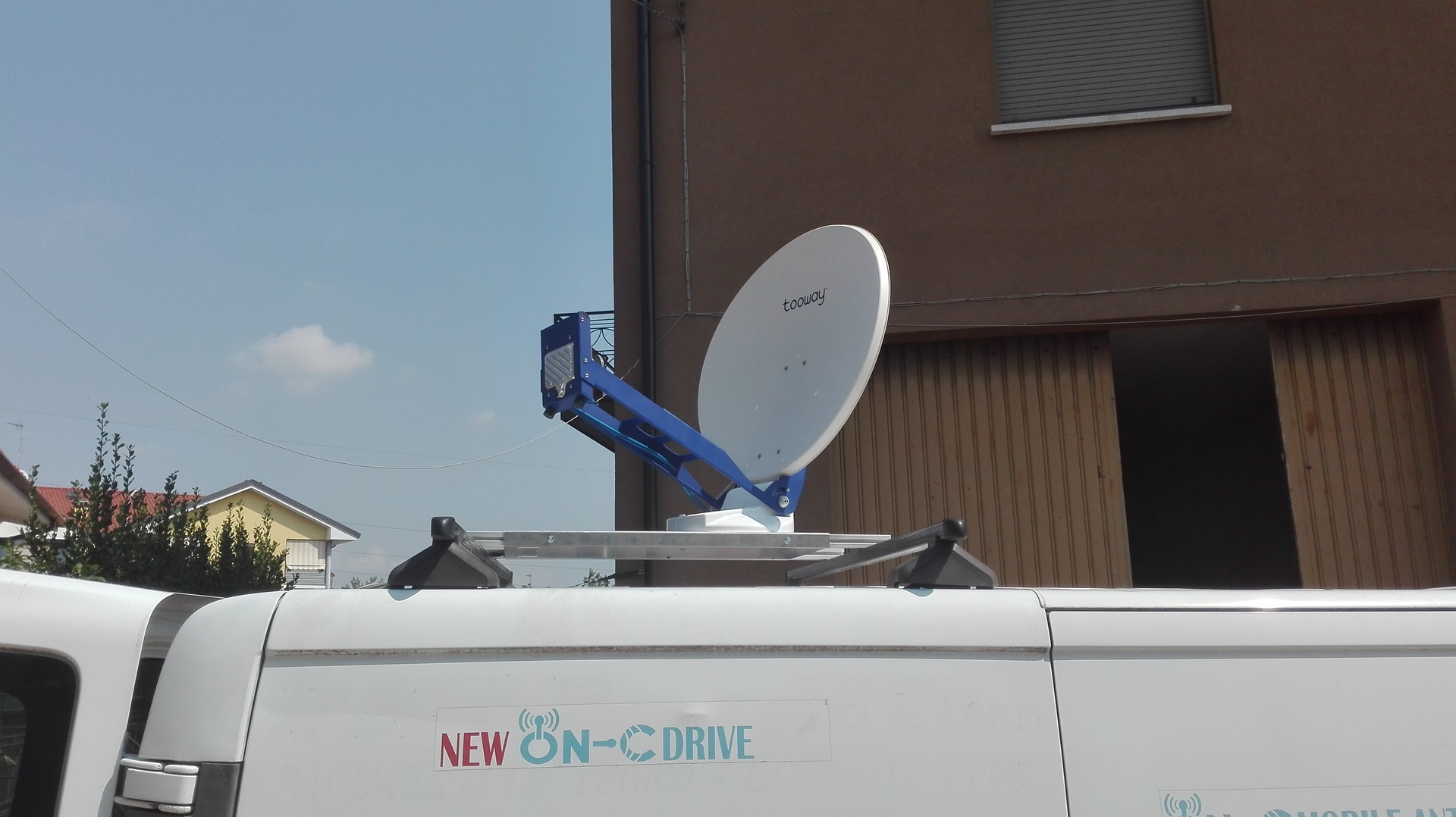

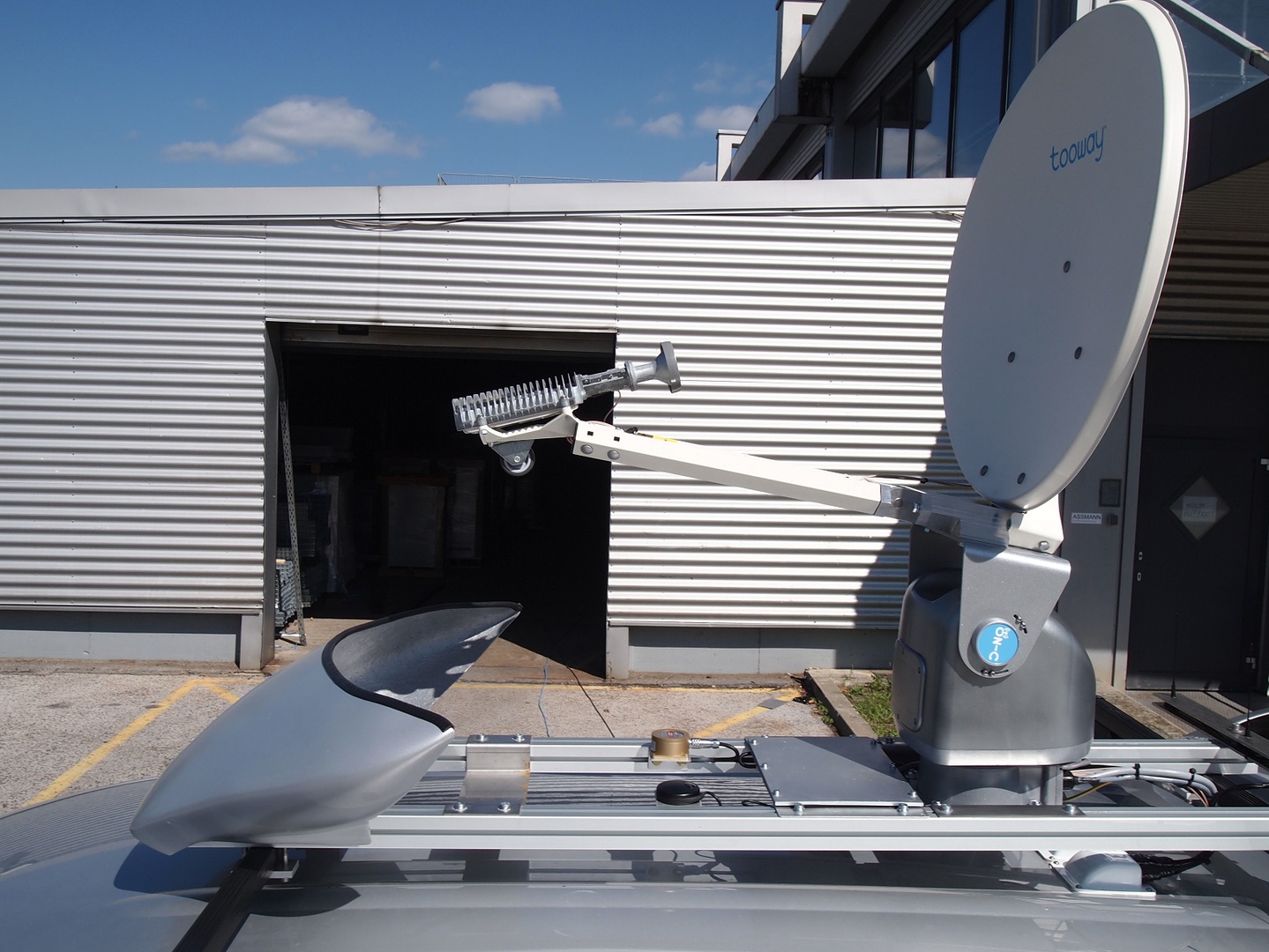

With this unit mounted
on a car you will go live
anywhere anytime.
• fully automatic motorized antenna (77/98 cm radius ).
• Upload up to 40Mbit/s .
• cost-effective
• Fast deployment , precise control and fully autopointing
• Extremely high pointing and peaking accuracy.
• Hybrid or fly rapid- exchange option (from drive to tranportable in less
then two minutes).
With fully automatic pointing the system is simple to setup and use.

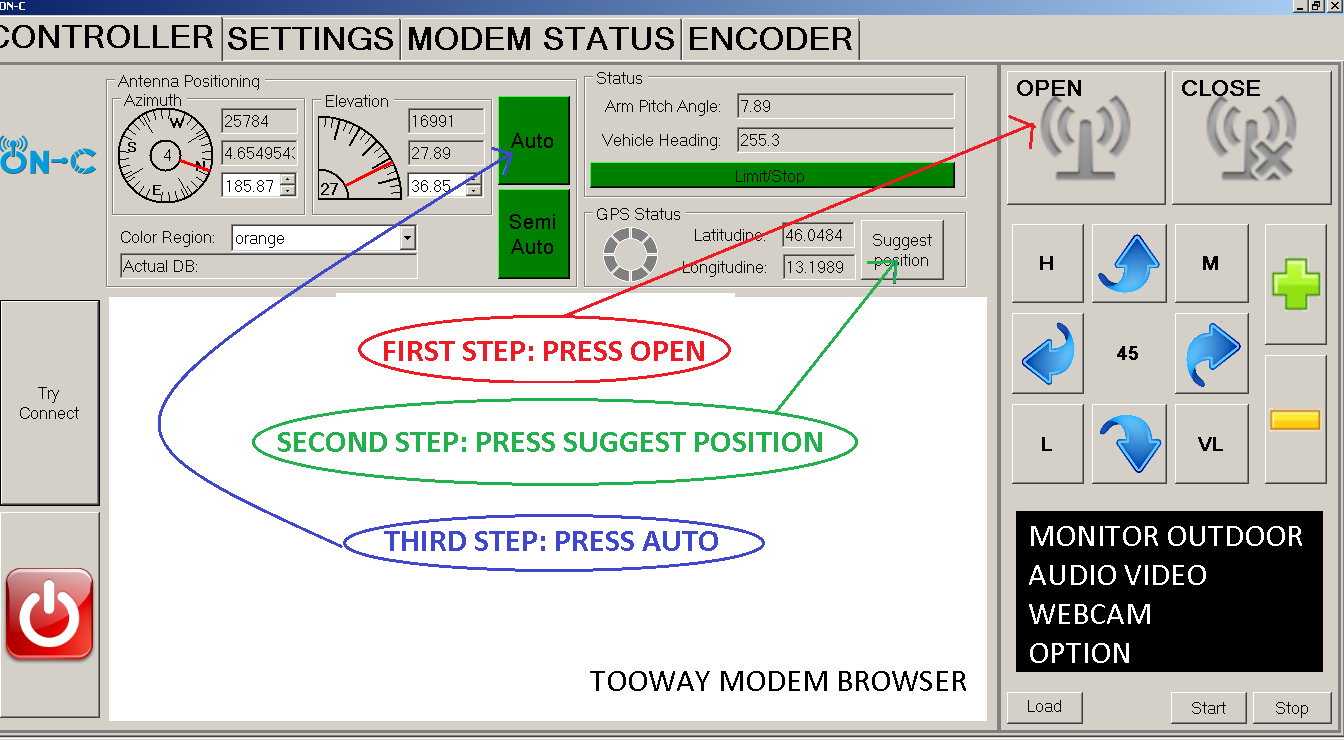

A simple user interface requires no special training but gives the
operator full control if required.
The system has been designed to make the solution light,
rugged and fast to deploy.

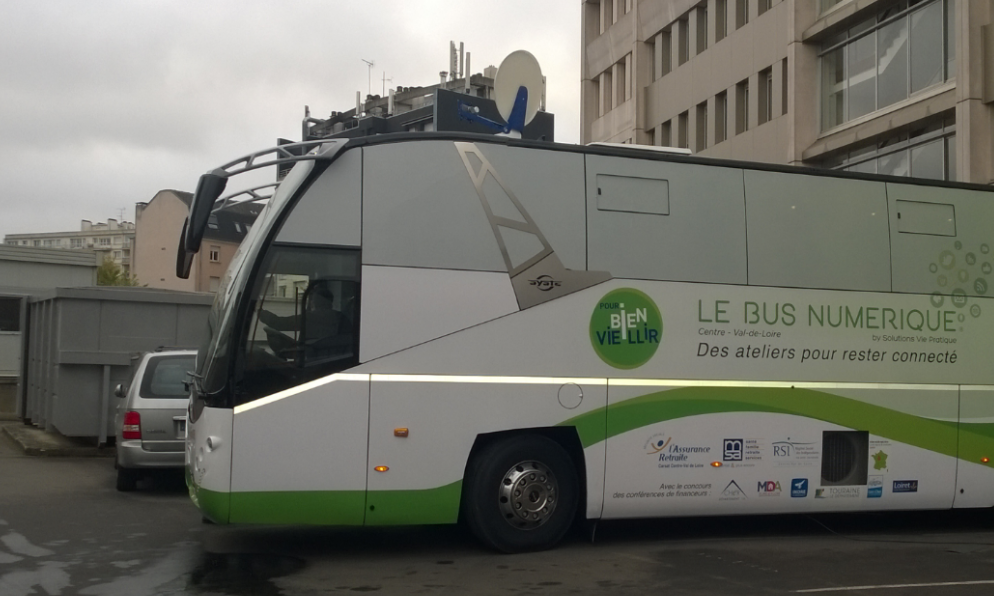

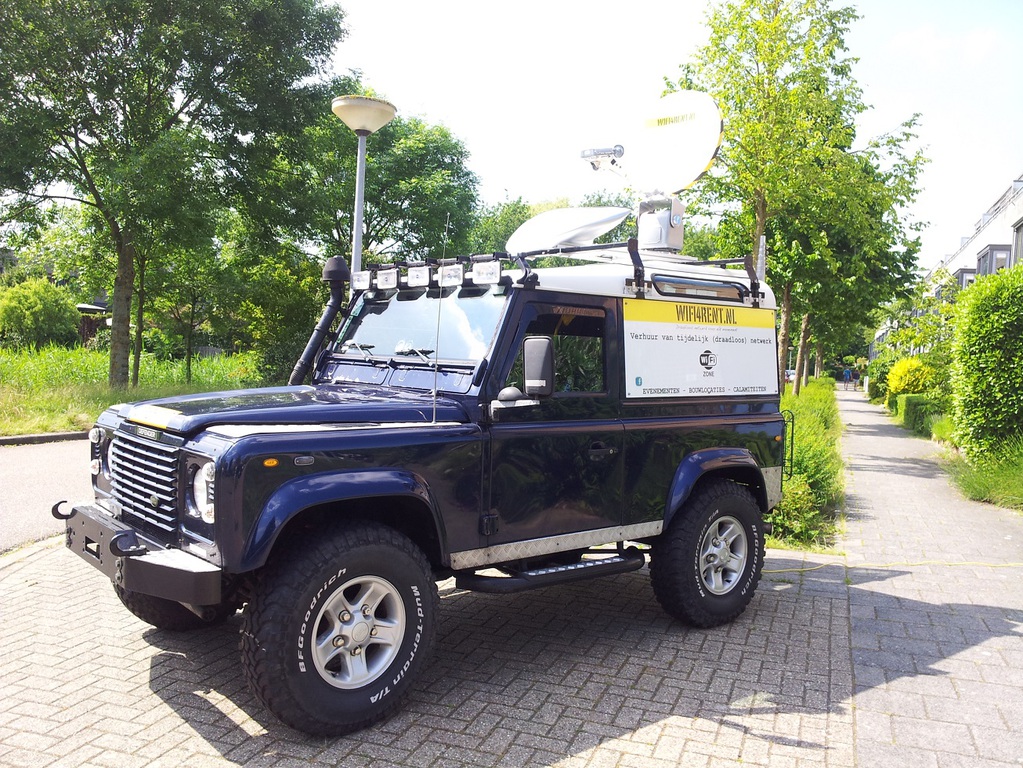

With the system so light and compact it can be fitted to virtually any base
vehicle.

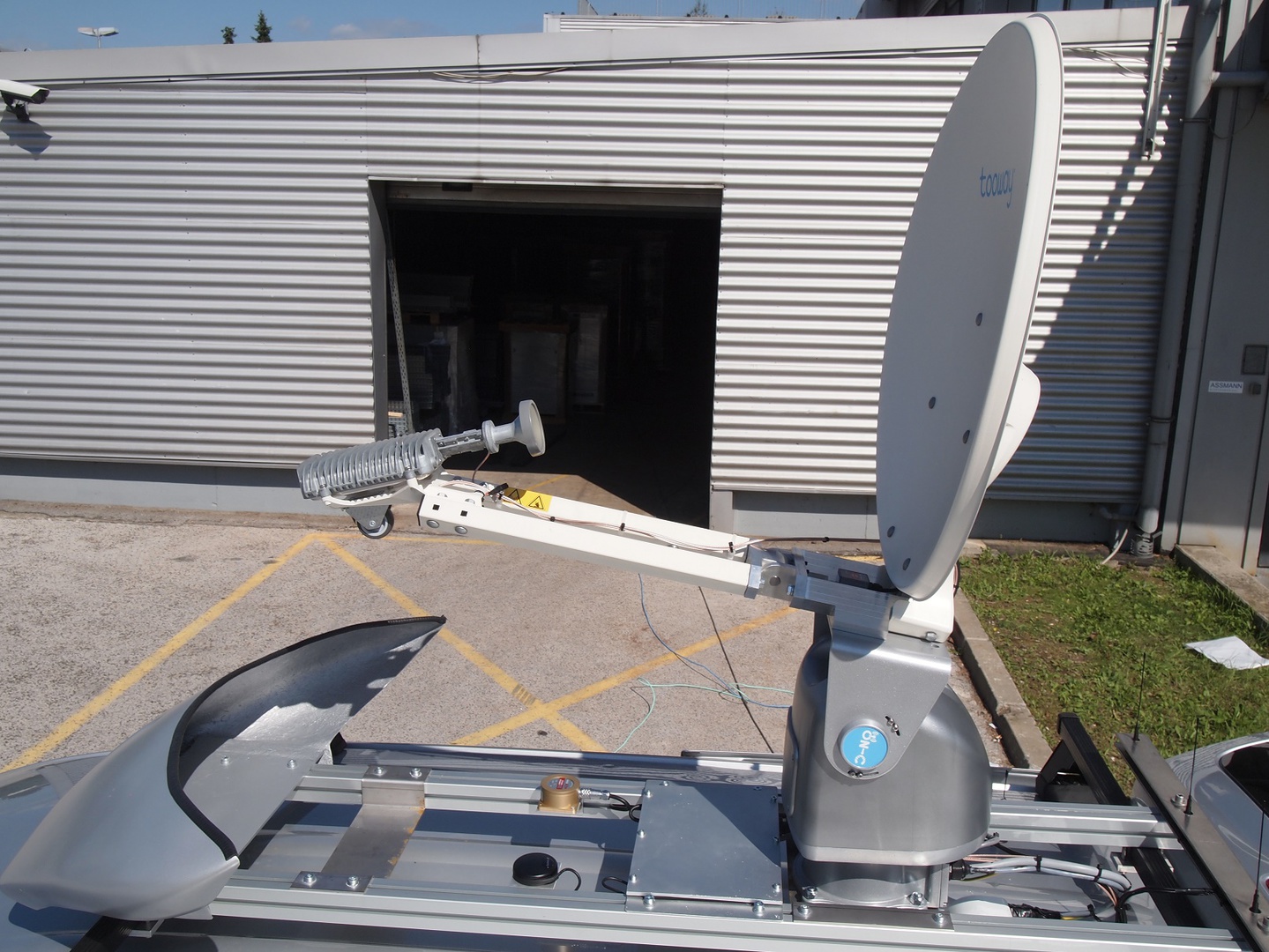

Specifications DRIVE D 70
Reflector: 77cm (Standard Viasat part) Sensors:Elelevation,GPS,compass Speed:Variable typ. 20-0.1º/sec Power interface: Prime power 110/220V AC 50/60Hz or 24VDC Dimentions with pod: 1390mm x 770mm x 350mm Weight system with pod : <4 Kg indoor,<32 Kg roof mount Use temp: -30ºC to 55ºC Wind speed: 75 km/h Operational 140 km/h stowed Rain: Fully waterproof in use Construction antenna system: Aluminium and stainless steel Positioner Elevation range: 0,75 Degrees(option 90) Azimuth range: 180° +/- (360°) Polarisation: Automatic switching of polarity Performance : BUC size 3 W (standard ViaSat part) Feed :Circular polarised KaBand Frequency ( GHz): RX 18.30 - 20.20 TX 28.10 - 30.0 Frequency :KaBand Operation pointing time: <2 minutes typical Pointing system: Automatic,manual(option manual w/o motors)
Specifications DRIVE D100 Reflector:98cm Skyware Global Type 980SI Eutelsat approve Sensors:Elelevation,GPS,compass Speed:variable typ. 20-0.1º/sec Power interface:prime power 110/220V AC 50/60Hz or 24VDC Dimentions with pod:1590mm x 980mm x 390mm Weight system with pod : <4Kg indoor,<38 Kg roof mount Use temp: -30ºC to 55ºC Wind speed: 70 km/h Operational 130 km/h stowed Rain: Fully waterproof in use Construction antenna system: Aluminium and stainless steel Positioner Elevation range: 0, 70 Degrees Option 85 Azimuth range: +/- 180 degrees Polarisation: Automatic switching of polarity Performance :BUC size 3/4W (standard/optional ViaSat part) Feed :circular polarised KaBand Frequency ( GHz): 18.30 - 20.20 28.10 - 30.0 Frequency :KaBand Operation pointing time: <2 minutes typical Pointing system: Automatic.manual(option manual w/0 motors)

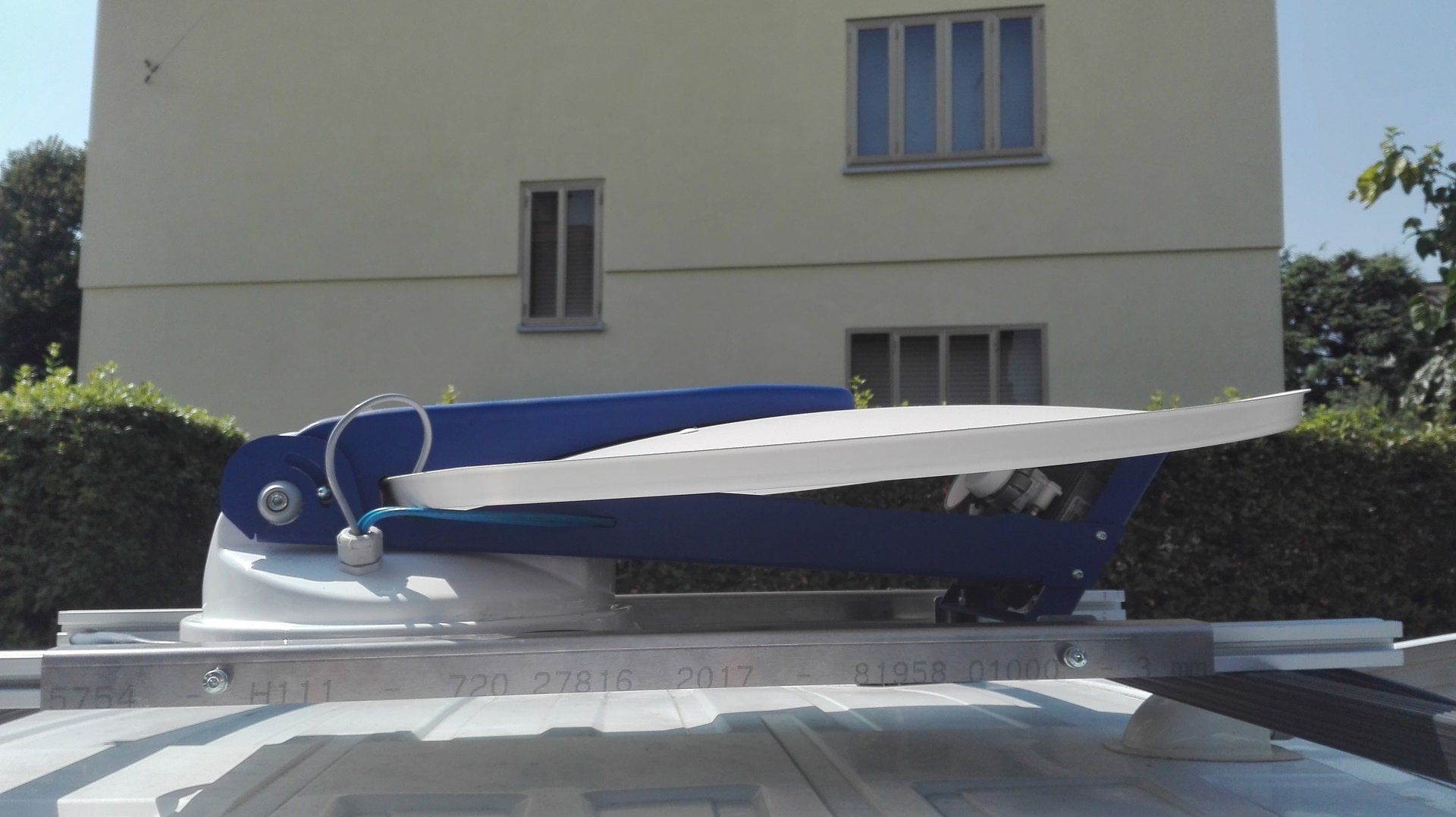

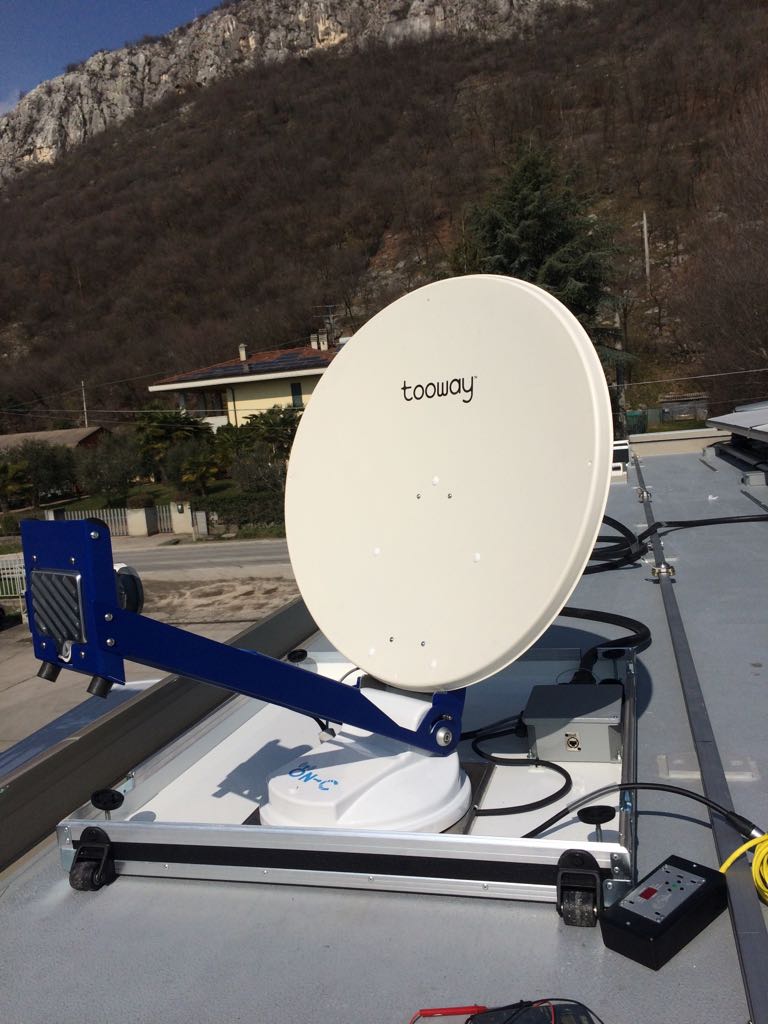

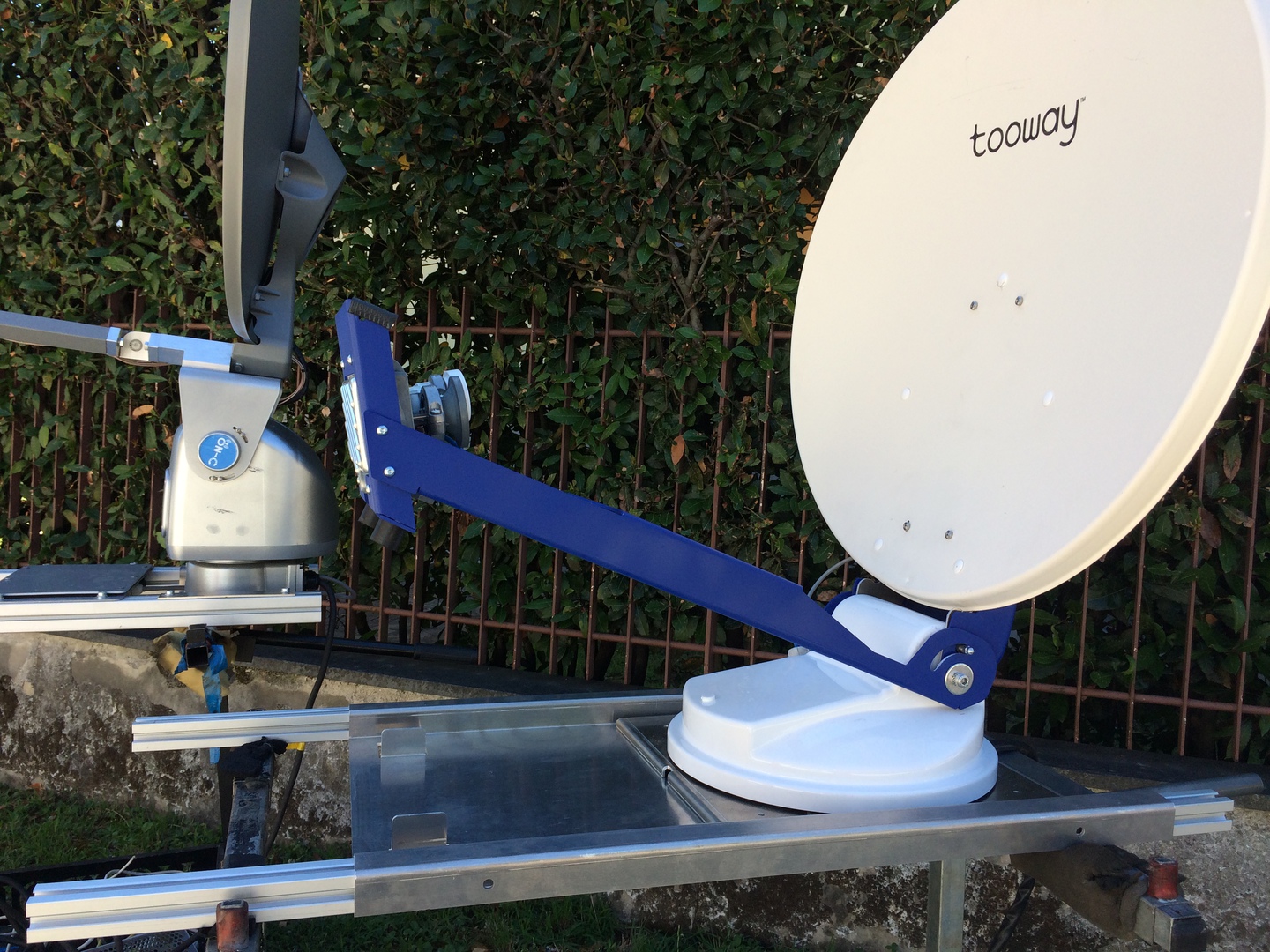

Specifications DRIVE C70
Reflector: 77cm (Standard Viasat part) Sensors:Elelevation,GPS Speed:Variable typ Power interface: Prime power 110/220V AC 50/60Hz or 12VDC Dimentions: 940mm x 770mm x 240mm Weight system with pod : <4 Kg indoor,<10 Kg roof mount Use temp: -30ºC to 55ºC Wind speed: 75 km/h Operational 140 km/h stowed Rain: Fully waterproof in use Construction antenna system: Aluminium and stainless steel Positioner Elevation range: 0,60 Degrees(option 90) Azimuth range: (360°) Polarisation: Automatic switching of polarity Performance : BUC size 3 W (standard ViaSat part) Feed :Circular polarised KaBand Frequency ( GHz): RX 18.30 - 20.20 TX 28.10 - 30.0 Frequency :KaBand Operation pointing time: <2 minutes typical Pointing system: Automatic,manual
ON-C
Via Torino 69
33037 Pasian di Prato
Udine Italy
Tel. +390432691211
Mob.+393356042667
E-mail katooway@gmail.com
